Kadee 742 O Scale Type E Medium Overset Metal Couplers With Plastic Gearboxes

---

This industry leading coupler features New Generation AAR Type “E” “Prototype” Head Medium Overset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids The #742 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

#742 Coupler Instructions

Two pair per package

UPC: 765484007425

  Made in the U.S.A.

O-Scale

New Generation AAR Type “E” “Prototype” Head:

Simple Drop in Design
Trouble Free Operation
Hidden Knuckle Spring
AAR Type “E” Coupler Style
Compatible with Kadee® O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last…

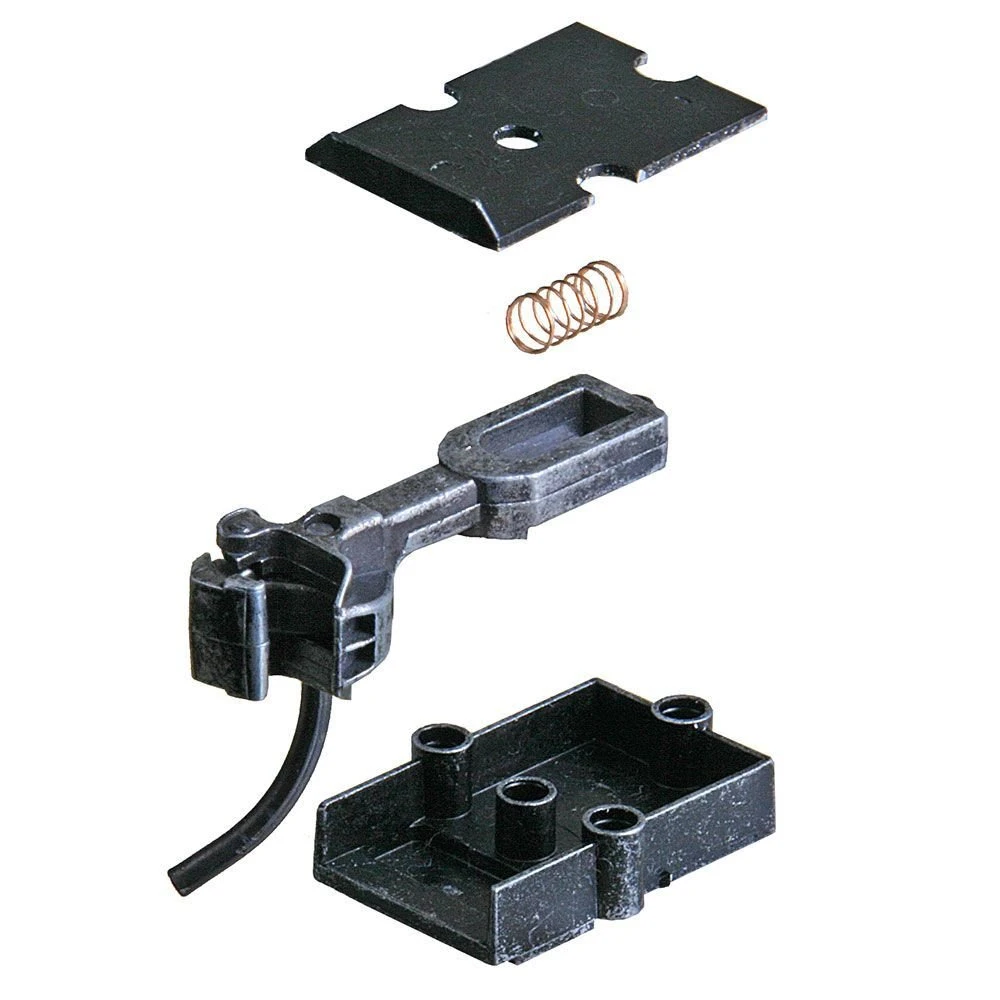

Package Includes:

(4) Each #742 Type “E” “Prototype” Metal Couplers – Medium Overset Shank
(4) Each #817 Plastic Gearboxes & lids
(5) Each #850 O Scale Centering Springs

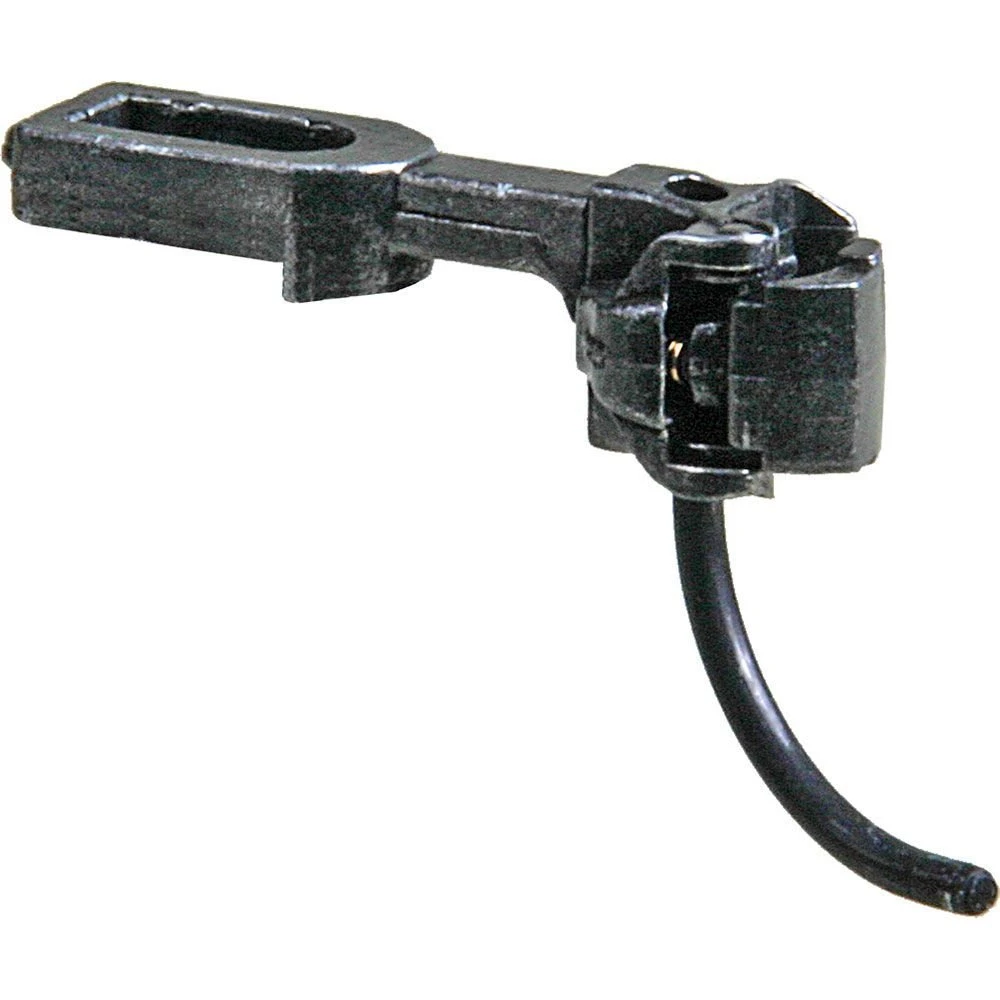

#742 Metal Coupler Features:
Material
 –   Metal
Shank Length
 –   Medium (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset
 –   Overset
Centering Spring
 –  #850 O Scale Centering Springs
Head
 –   New Generation AAR Type “E” “Prototype” Head
Works With
 –   #817, #818, #819 Draft Gearboxes

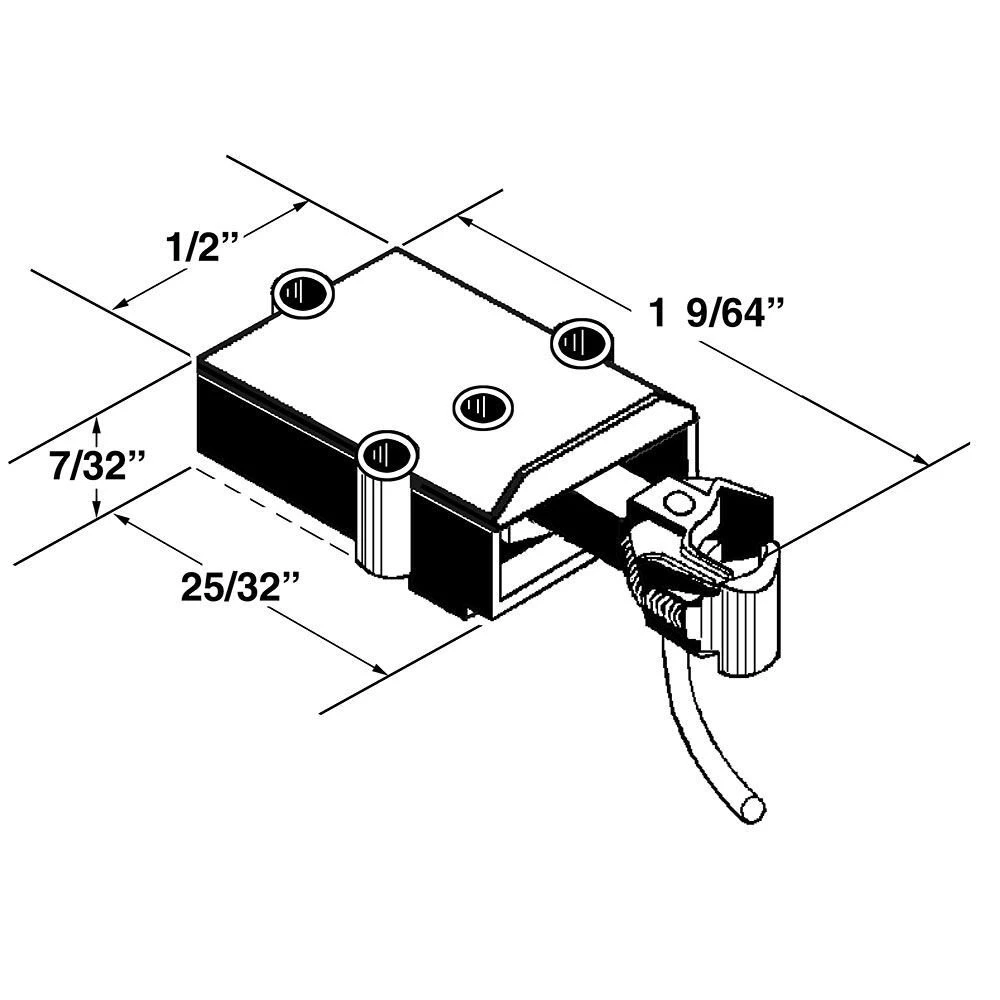

#817 Plastic Draft Gearboxes & Lids Features:
Material
 –   Plastic
Dimensions
 –  25/32″L x 1/2″W x 7/32″H
Works With
 –   #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

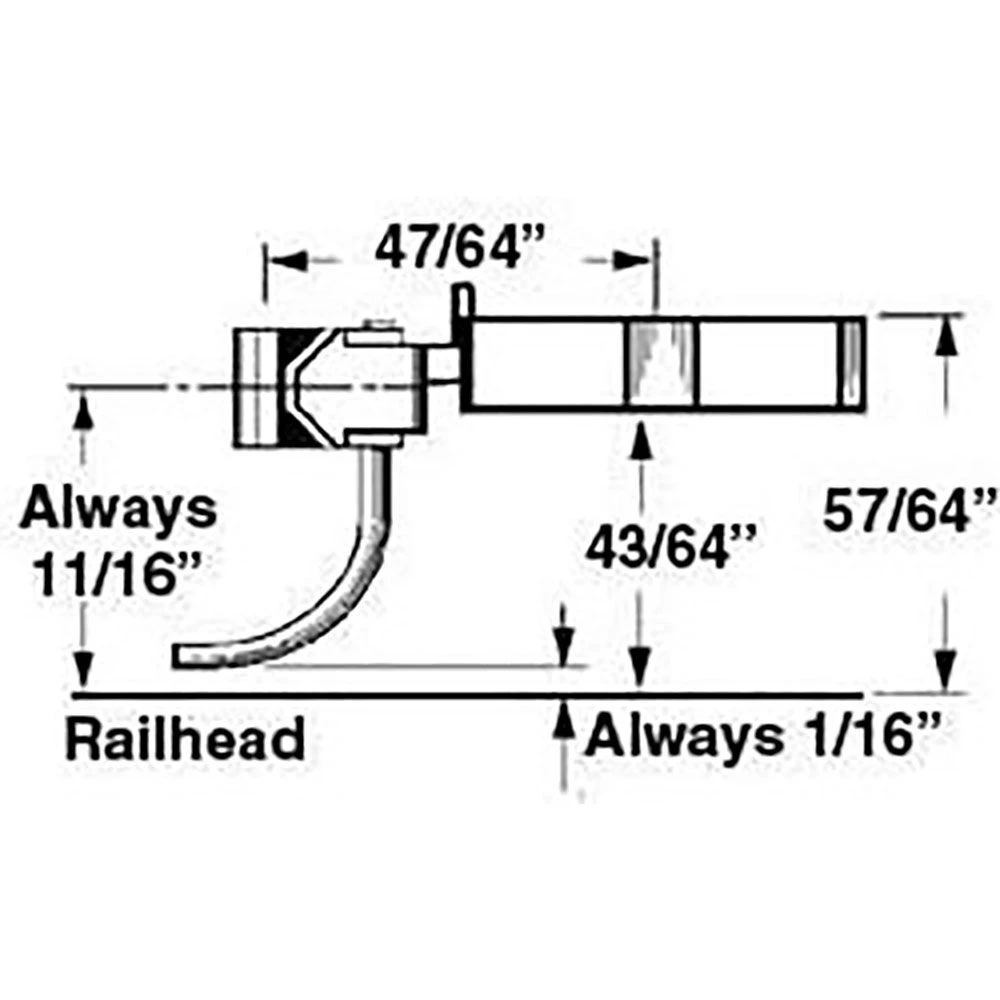

Mounting Specifications:
Mounting Height
 –   57/64″
Centerline
 –   1 1/16″
Trip Pin Height
 –   1/16″
Mounting Holes
 –   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Recommended Tools:

#812 O Scale Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap (2-56) and Drills (#50 and #43)
